Product Description
Support to connect to COIN ACCEPTOR ,BILL ACCEPTOR
Max Current Load: 15A
Relay Control: Control power wire like switch.
Set up price, time, and working mode freely.
Size:54.3 mm × 94.0 mm
Features:
Input Voltage: DC+12V
Standby: Display shows 00:00. Relay Normal Open (NO)
Accumulated Time: Yes, add time if receive signals again when time is running
Max current load: 15A
How it works
Mode 1:
Time runs down after receive signals-> Display shows remaining time and supply power to device-> it cuts off power after time runs out
Mode 2:
Display shows remaining time after receive signals-> push button start-> time runs down and supply power to device-> it cuts off power after time runs out
Button Pause
Push button pause: it cuts off power when pause, display shows remaining time. Re-supply power after push button pause again

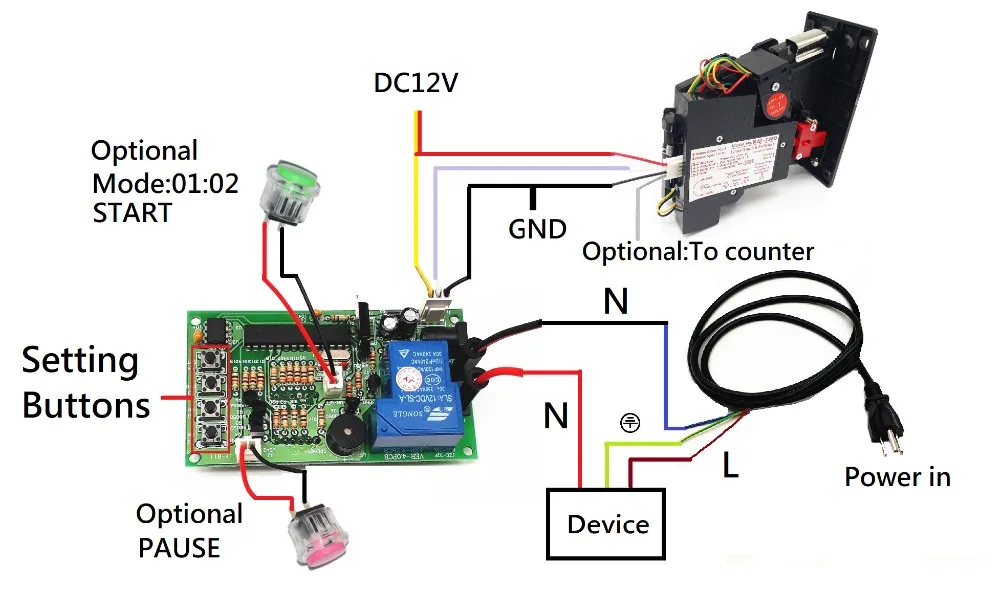

Connection Example
Size
